ATN X-SIGHT 4K PRO 5-20X

Smart Ultra HD day & night system

Ultra HD Optics with the ATN Revolutionary Ultra HD Day/Night Sensor
gives you an incredibly crisp picture from any distance
Ultra HD Sensor
With Ultra HD Optics
Night Vision Mode

The X-sight 4K Pro offers an Enhanced HD Night Vision Mode.
Don't let the darkness slow you down.

Video Record — in sharp 1080p

Don't miss another opportunity to capture that once in a lifetime moment

Record your Adventures in Full HD and take photos to bring adventures back home to share with friends, family and on social media.

Easy to mount — Easy to use
New controls

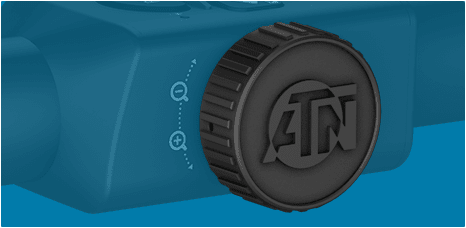

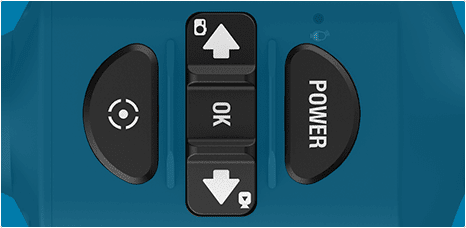

Spin to Zoom Wheel - what could be more Natural. While the new Tactile Buttons let you feel every click for optimal control.

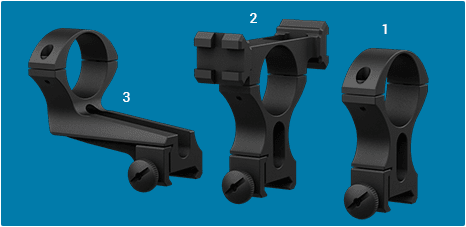

Included:
1. Standard ring
2. Ring with Picatinny rail
3. L-shape ring
Classical Ergonomics
21st Century Technology designed to make your Shooting Experience easy and familiar
Easy Optics Zeroing

Sighting in your ATN 4K optics has never been easier with our system.

Smart Range Finder

Fast and Easy way to make a good distance estimation. Take two easy readings of your target and our system will not only range in on your prey but adjust your reticle’s Point of Impact instantaneously.

Ballistic Calculator
No more complicated chart tablets and calculations.
Range, Wind, Multiple Profiles, Angle to target, Temperature, Humidity, more...
Profiles
R. Type 223 Remington
Drag Function G1
Ballistic Coefficient 0.371
B. Weight 55 gr
Initial Velocity 2850 fps
Zero Range 100 yd
Sight Height 2.5 in
S. Angle -2°
Environment
Relative Humidity 85%
Wind Speed 12 mph
Wind Direction -45°
Temperature 59°F
Barometric Pressure 29.92 hg
Altitude 1800 ft

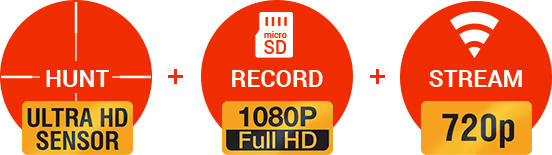

Dual Stream Video

You asked and we listened.
Obsidian 4 not only Streams Video at HD resolution but can simultaneously
Record to the SD card inside.

At the same time!

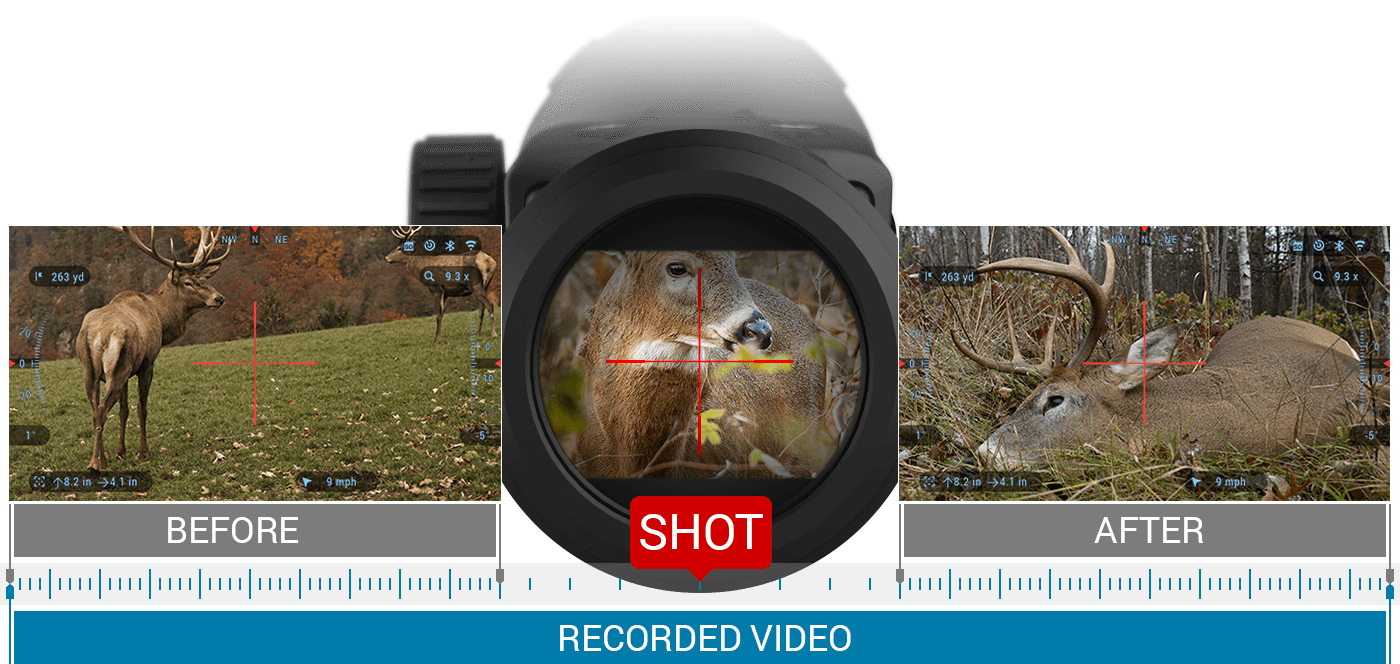

Recoil activated video
Never miss that Excellent Moment. Turn on RAV and let the X-Sight 4k Pro Record directly to your SD card.
Recoil Activated Video (RAV) takes care of all your worries. Just relax and focus on your game and let the Obsidian Core do the heavy lifting.
Ultra low power consumption

Our new Dual Core Processor not only runs fast but runs cool.
1st ever digital optics system with over 18hrs of continuous battery power.

18+
Hours of Continuous Use
Recoil
Resistant

Designed to withstand the pressures. The X-Sight is built out Hardened Alluminium Alloy with Impact Resistant Electronics.

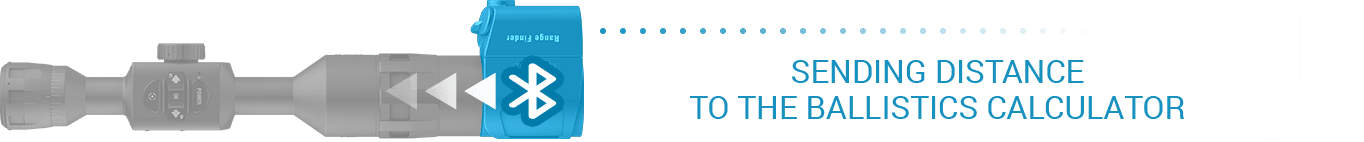

Auxiliary ballistic laser

Turns your X-Sight 4K into a Full LRF optics *Optional

The ABL Laser RangeFinder turns your X-Sight into a Long Range Optics System.
Simple installation and One button operation will make you into the deadliest predator around.

TECHNICAL SPECIFICATIONS
ATN X-Sight 4K Pro 3-14x done ATN X-Sight 4K Pro 5-20x
SKU DGWSXS3144KP DGWSXS5204KP
Magnification 3-14x 5-20x
Field of view at 1000 yds 460 ft (9°) 240 ft (5°)
Sensor ATN 4K M265 Sensor, 3864 (H) x 2218 (V)
Core ATN Obsidian IV Dual Core
System Resolution 600 lp/mm
Micro Display 1280x720 HD Display
Eye relief 90 mm
Video Record Resolution 1080p @ 30/60/120** fps
Ballistic Calculator Yes
WiFi (Streaming, Gallery, & Controls) iOS & Android
Bluetooth Yes
3D Gyroscope Yes
3D Accelerometer Yes
E-Barometer Yes
Smart Range Finder Yes
RAV (Recoil Activated Video) Yes
Electronic Compass Yes
Smooth Zoom Yes
Night Vision Mode Yes
Reticles Multiple Patterns & Color Options
Microphone Yes
Micro SD card 4 to 64 Gb
Micro USB, type C Yes
Mount 30 mm Standard Rings (included)
IR Illuminator Included
Battery life (Li-ion) 18 + hrs
Battery type Internal Lithium Ion Battery
Waterproof rating / IP rating Weather resistant
Dimensions (body only) 13.8"x3"x3"/ 350x76x76 mm 14.9"x3"x3"/ 379x76x76 mm
Weight 2.1 lb / 0.94 kg 2.2 lb / 1.01 kg
Warranty 2 years
This product is subject to one or more of the export control laws and regulations of the U.S. Government and it falls under the control jurisdiction of either the US Department of State or the US BIS-Department of Commerce. It is unlawful and strictly prohibited to export, or attempt to export or otherwise transfer or sell any hardware or technical data or furnish any service to any foreign person, whether abroad or in the United States, for which a license or written approval of the U.S. Government is required, without first obtaining the required license or written approval from the Department of the U.S. Government having jurisdiction. For further information please contact ATN.
120 fps Day mode only w/loss of widgets
Included accessories

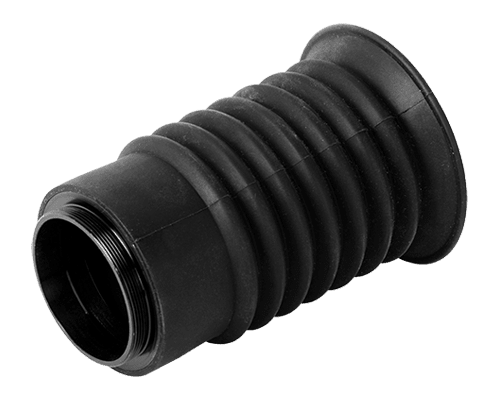

eyecup Eyecup

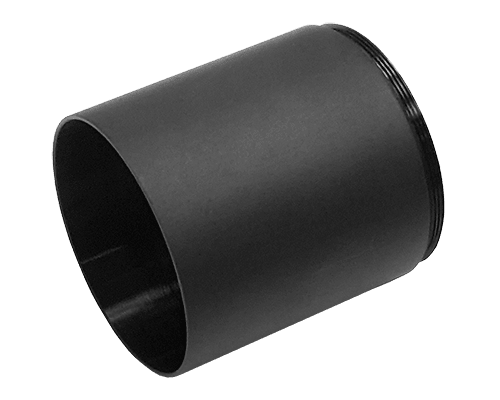

sunshade Sunshade

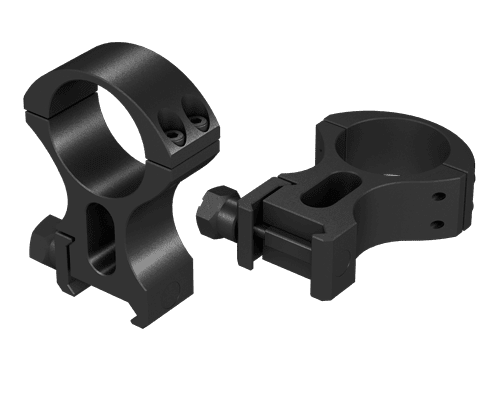

standard rings Standard rings (2pcs.)

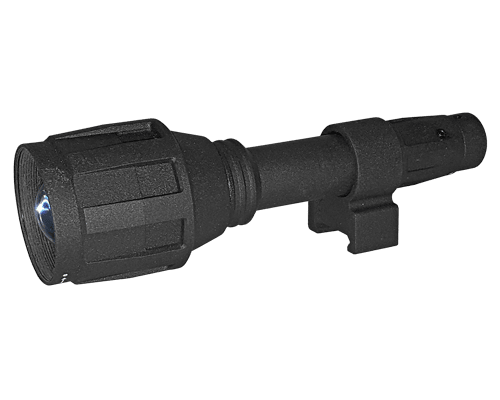

ir850 4k IR850 Infra-red Illuminator

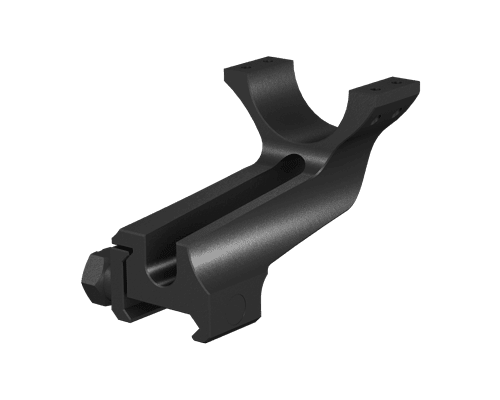

l shape ring L-shape ring

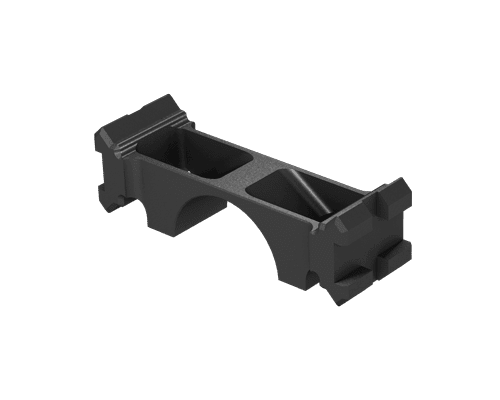

ring with picatinny rail Ring with Picatinny rail

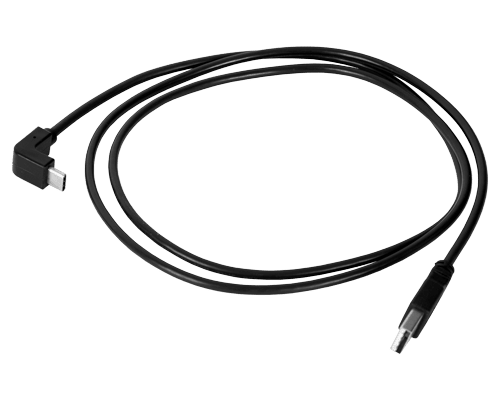

usb c cable USB-C Cable
cover Cover

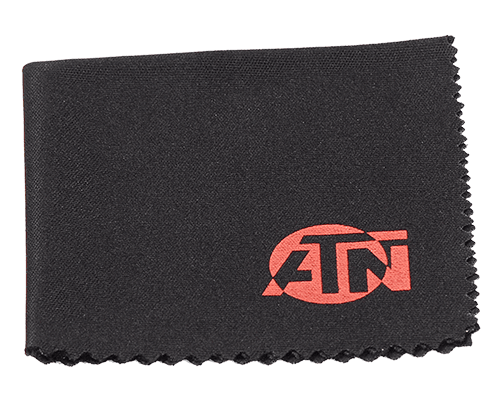

214 Lens Tissue
